wpc panel size L120120-2 square posts with round inner holes offer a unique design solution for outdoor pergola construction

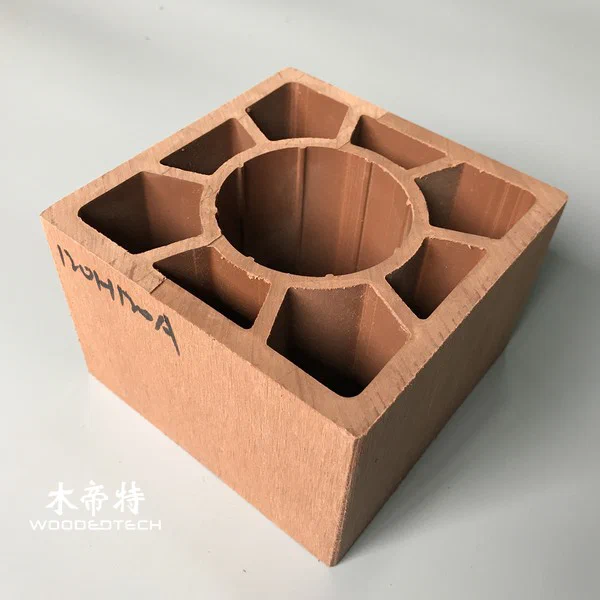

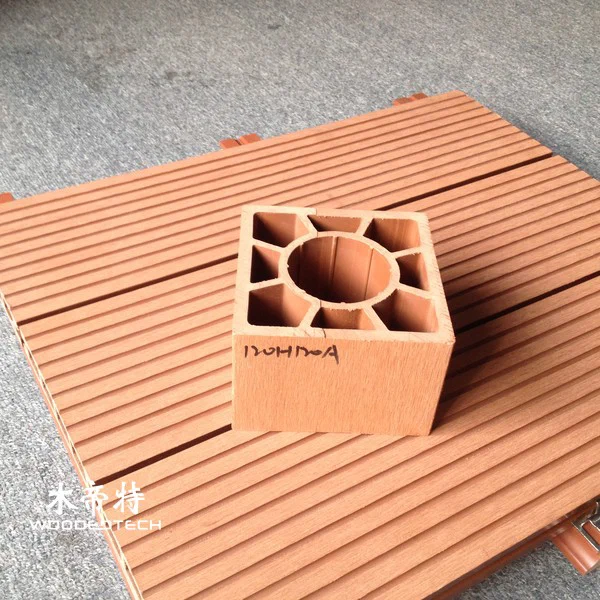

WPC panel size L120120-2 square posts with round inner holes are a practical extrusion-based solution for outdoor pergola construction. The profile combines a clean square exterior with a round internal cavity, giving designers a strong, stable member that is easier to handle than fully solid sections and more economical than oversized heavy walls.

How profile geometry affects performance

For pergola posts, the cross-section does most of the engineering work. A square outer shape improves alignment, visual consistency, and connection to beams, while the round inner hole helps distribute material more efficiently than random voids. This balance supports good stiffness without unnecessary weight, which matters when the structure must be lifted, positioned, and fixed on site.

Hollow structures reduce resin and fiber usage, lowering material cost and transport weight. Solid structures, by contrast, deliver higher mass and greater screw-holding reserve, but they also increase cost, handling difficulty, and thermal movement stress. For most outdoor pergola frames, a well-designed hollow post gives the best trade-off, especially when the span and wind load are properly calculated.

Rib design and wall thickness matter

Inside the extrusion, ribs are what turn a simple tube into a structural profile. Longitudinal ribs improve bending resistance, control wall deformation, and support fastener zones near beam connections. If the wall is too thin, the post may feel flexible, dent more easily, or deform around anchors. If it is too thick everywhere, the profile becomes expensive and harder to cool evenly during extrusion.

As an extrusion mold design engineer, I focus on keeping the material where stress is highest: corners, connection zones, and load-bearing faces. This is why L120120-2 style posts can perform well in outdoor pergolas when the rib layout is matched to real installation loads instead of copied from a decorative profile.

Surface pattern and installation value

Surface patterns influence more than appearance. Wood grain, matte embossing, or light texture can improve scratch hiding and reduce glare, but deep patterns may slow cleaning and raise tooling complexity. For outdoor pergolas, a restrained surface pattern is usually best because it looks premium, resists visible wear, and does not interfere with bracket seating or tight assembly.

Installation performance also depends on dimensional stability. Square posts with consistent corners are easier to cut, drill, and connect with cap plates, base shoes, and beam brackets. Round inner holes can simplify cable routing or drainage management in certain custom projects, while keeping the profile visually clean from the outside.

Choosing the right structure for the project

The best WPC post design depends on wind exposure, span length, and budget. A hollow ribbed post is typically ideal for standard residential and commercial pergolas. Solid profiles make sense only when impact resistance or heavy point loads justify the added cost. The right mold design should match the project’s structural target, not just the appearance.

FAQ

Q: Why use a square post with a round inner hole instead of a fully solid post? A: It reduces weight and material cost while keeping enough stiffness for pergola framing. The geometry also makes handling and installation easier.

Q: Do ribs really improve WPC post strength? A: Yes, ribs help carry load and reduce wall deformation, especially near connections. They are a key part of efficient extrusion design.

Q: Can surface texture affect outdoor pergola performance? A: It can. A light texture hides scratches and looks more natural, while overly deep patterns may complicate cleaning and assembly.
