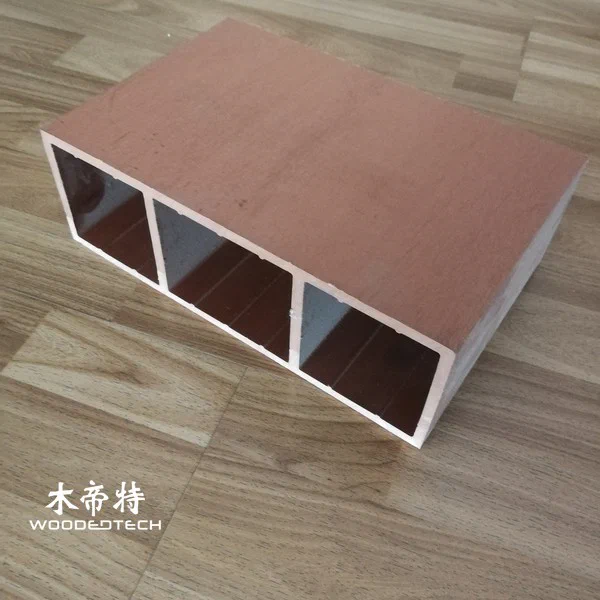

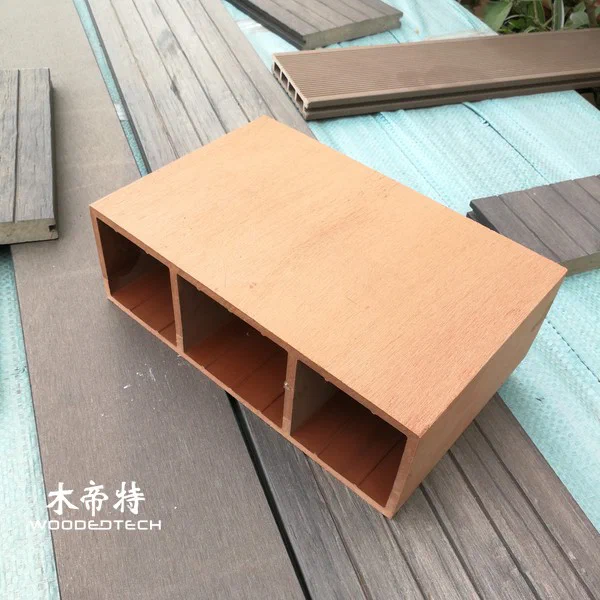

L300100 Extra Large 300mm Wide WPC Pergola Material for Strong Outdoor Beam Structures

L300100 is an extra large 300mm wide WPC pergola material designed for strong outdoor beam structures where span, load, and appearance all matter. Its profile geometry has a direct effect on stiffness, weight, material usage, and how easily the beam can be installed and aligned on site.

How profile design changes performance

For pergola beams, width alone does not decide strength. The cross-section shape controls how efficiently the material resists bending and twisting, which is why an engineered WPC beam often performs better than a simple oversized solid block. A wider profile can create a more stable visual line and better load distribution, but the internal design must support that width without unnecessary weight.

Hollow structures are useful when the goal is to reduce weight and resin use while keeping enough rigidity for decorative or semi-structural applications. They are easier to handle, lower shipping cost, and reduce pressure on connectors and post hardware. Solid structures add more mass and higher impact resistance, but they also increase cost, slow installation, and may be unnecessary if the beam is only carrying cladding-style loads or light roof elements.

Rib design and internal reinforcement

Ribs are the most practical way to improve a large WPC beam. Internal ribs stiffen the section, help prevent wall collapse, and keep the profile straight during cooling and long-term outdoor use. In a 300mm-wide beam, ribs also control deflection across the wide face, which is important for pergolas that must look straight over long spans.

A well-planned rib layout can deliver near-solid performance with less material. That lowers cost and improves extrusion stability. It also helps screws bite into defined zones, which is critical for concealed fixing, bracket mounting, and cleaner installation on pergola frames.

Surface pattern and outdoor usability

Surface patterns influence more than appearance. A wood grain or embossed finish improves the premium look of the pergola and helps hide minor scratches from handling. For outdoor use, texture also affects slip resistance when the beam is used as part of a side screen, decorative frame, or accessible structure.

Deeper patterns can slightly increase tooling complexity, but they often improve market appeal and make the profile look closer to natural timber. Smooth surfaces are simpler and cheaper, yet they show dust and minor waviness more easily on wide profiles. For extra large sections like L300100, a balanced surface treatment is usually the best choice.

Strength, cost, and installation trade-offs

If the beam is too heavy, installers need more labor, stronger brackets, and more careful alignment. If it is too light or under-ribbed, it may deflect or feel weak at the joints. The best pergola profile balances these factors through wall thickness, hollow chamber ratio, and rib placement.

Key design priorities for large WPC pergola beams:

• enough section modulus for long-span stiffness
• controlled weight for easier lifting and fastening
• optimized wall thickness to avoid warping
• internal ribs for connector support and dimensional stability
• surface texture suited to outdoor architectural use

For project buyers, the right design can reduce total system cost even if the profile itself is more complex. Less waste, faster installation, and fewer support components often matter more than raw material price alone.

FAQ

Q: Why is a 300mm wide WPC pergola beam useful for outdoor structures? A: It creates a strong visual beam line and supports large-span pergola designs with better stiffness than smaller profiles. The wide section is also ideal for modern architectural projects that need a bold appearance.

Q: Are hollow WPC beams weaker than solid beams? A: Not necessarily. A well-designed hollow beam with proper ribs can achieve excellent stiffness while staying lighter and easier to install. Solid beams are stronger in mass, but they are usually heavier and more expensive.

Q: What surface finish is best for outdoor pergola material? A: A wood grain or lightly embossed surface usually gives the best balance of appearance and practicality. It improves the visual quality and helps the beam look more natural in outdoor settings.
