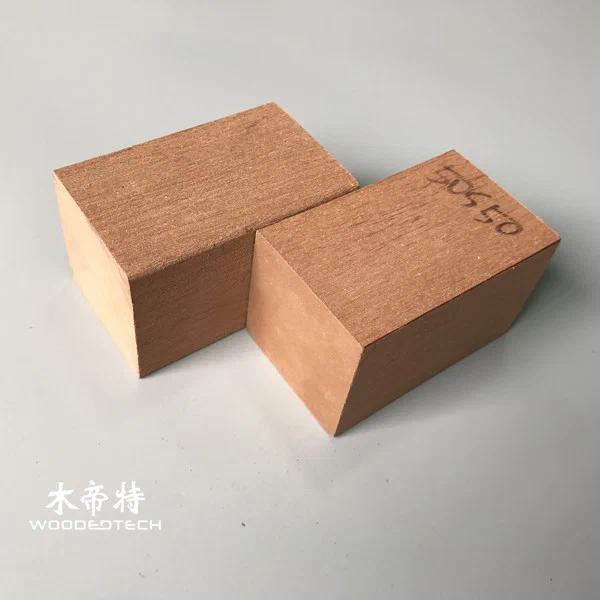

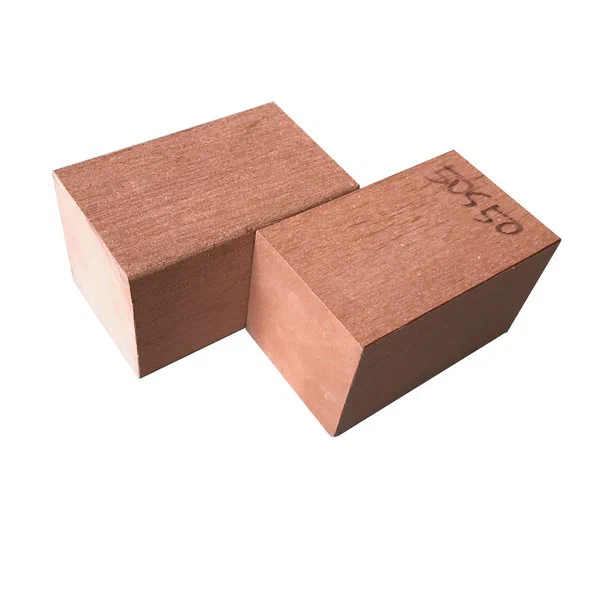

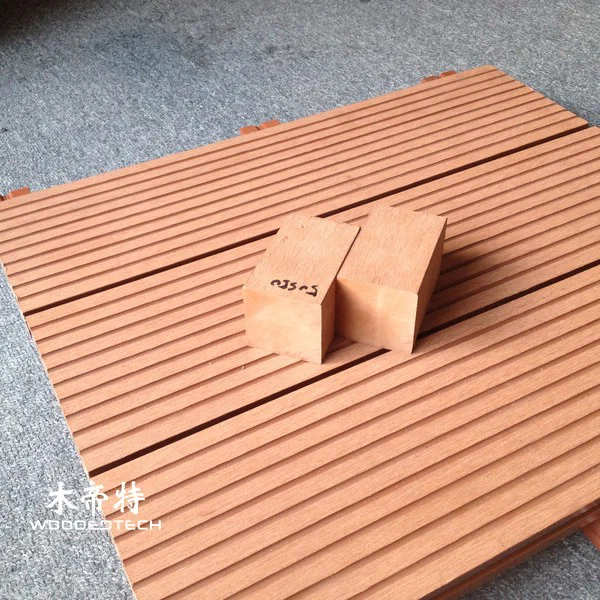

F5050 solid four side flat WPC Board is suitable for outdoor bench slats and various construction applications

F5050 solid four side flat WPC Board is designed for outdoor bench slats and a wide range of construction uses where strength, weather resistance, and clean installation matter. For a profile like this, the extrusion mold design has a direct impact on how the board performs in service, how much it costs to produce, and how easy it is to install.

Profile design and why it matters

A WPC profile is not just a shape; it is the product’s structural logic. For bench slats, flat sides improve contact with brackets and support frames, while a consistent cross-section helps the board sit straight during cutting, drilling, and fastening. The F5050 format is especially practical because it gives a simple, predictable geometry that works well in outdoor seating, trim, and general construction parts.

In mold design, even small changes in wall thickness, corner radius, or surface flatness can affect cooling balance and shrinkage. A stable profile reduces warping, keeps the board visually uniform, and lowers the risk of installation issues on site.

Hollow structure or solid structure

Hollow WPC boards are useful when weight reduction and material savings are the main goals. They are easier to carry and can reduce transport cost, but they also need careful rib placement to prevent collapse, twist, or local bending under load. For wall applications or light decking, a hollow design can be efficient if the load is well controlled.

Solid structures like the F5050 board offer higher density, better screw holding, and more confidence under point loads. That makes them suitable for outdoor bench slats, steps, and construction uses where people expect a firmer feel and more resistance to impact. The trade-off is higher material consumption, which raises cost and weight, but also improves robustness.

Rib design, stiffness, and cost balance

Ribs are the most important internal feature in many WPC profiles. They increase bending stiffness without making the whole board overly heavy. A well-designed rib layout supports the top and bottom skins, controls heat distortion, and improves extrusion stability.

Too few ribs can cause sagging or surface sink marks. Too many ribs can complicate flow in the die, increase pressure, and make the profile harder to cool evenly. For a solid board, rib design may be less visible, but the same principle still applies in controlling internal density and reducing material waste during optimization.

Surface pattern and installation performance

Surface patterns influence both appearance and function. A smooth four-side flat board gives a clean, modern look and is easier to cut, sand, and fasten. It also allows installers to align boards precisely for bench slats and cladding details.

Embossed or grooved surfaces can improve grip and hide light scratches, but they may increase mold complexity and slightly raise cost. For construction applications, the best surface is the one that matches the use case: flat for accurate assembly, textured where slip resistance or visual depth is needed.

Practical design choices for F5050 boards

For outdoor bench slats and structural trim, the F5050 solid profile is a strong compromise between durability and manufacturing efficiency. It supports secure fastening, resists deformation, and keeps installation straightforward. When the mold is designed with balanced flow, controlled cooling, and a clean flat finish, the result is a board that performs reliably in demanding outdoor conditions.

FAQ

Q: Why is a solid WPC board better for bench slats? A: Solid boards provide higher stiffness and better screw holding, which helps them handle repeated loading and outdoor use more reliably.

Q: When should a hollow WPC profile be chosen instead? A: Hollow profiles are a good choice when reducing weight and material cost matters more than maximum load capacity.

Q: Does surface texture affect installation? A: Yes. Flat surfaces are easier to align and fasten, while textured surfaces may improve grip but can add complexity to fabrication.
